This document describes in detail the Enhanced Agent Requirements Forecasting module and how Community uses clusters to provide a significant reduction in the required headcount based on agent cross-training, and thereby provide a more accurate forecast of the number of agents required to satisfy the contact center load.
Why Enhanced Agent Requirements Forecasting?
Community, like most current workforce management applications, provides agent
requirements forecasting based on Erlang-C mathematical formulas to convert calls, handle
times, and service objectives into agents required. While the Erlang-C formulas have proven over
time to be reliable in their calculations, they do not account for multiskilled agents in the
contact center. The formula assumes that agents will be dedicated to servicing only the demand
from a single skill.
The concept behind the “clustering” strategy is to group activities together for the purposes of
generating agent headcount requirements by analyzing the cross-training matrix for the agents
involved in a schedule. As the cross-training increases, the number of agents required to satisfy
the demand in a single activity is reduced because, again, agents are shared across multiple
activities. The clustering should be performed such that the allocation is proportional to the call
volume for the activity, but relative to the number of agents that also have the particular activity
assignment.
Once the activities are clustered, they can be forecasted as a single activity and the agent cross
training efficiencies are realized. The cluster represents a group of related activities, and for
member activity in a cluster, Community calculates a probability of a call being answered by the
given activity in the given cluster. The more disjointed the cross-training matrix for the agents in
the schedule, the more clusters will result.

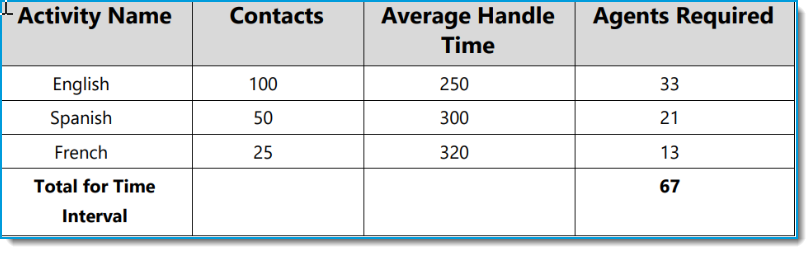

Consider a typical example.
(For all examples presented in this document, assume an 80/20 service level.)

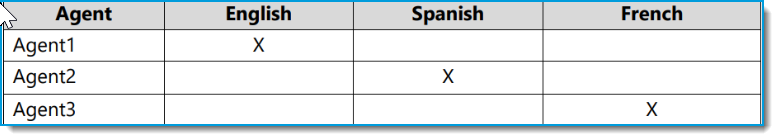

First, assume that no cross training exists between agents assigned to the above skills. This
would appear as in the following agent assignment table:
In this case, the Erlang-C based agent requirements forecast is perfectly correct, because no
efficiencies can be realized from agent cross-training.

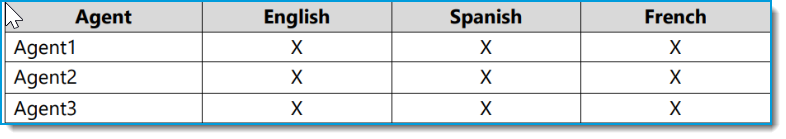

Now, consider the other extreme, where each agent is assigned all available skills. In this case,
the agent assignment table appears as follows:
The fundamental principle behind the clustering algorithm is that the demand (contact volume
and handle time) for commonly assigned skills can be combined into a single skill and reforecasted using the standard Erlang-C formula.
In the above example, all agents are available in all skills, so essentially the demand can be

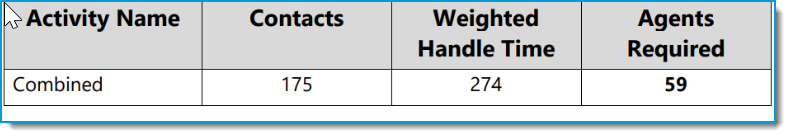

represented as a single composite skill. In this case, the following will be forecasted:
In this example, we can see that the cross training has provided a 12% agent efficiency gain (8
agents) simply by combining the skills cross trained. Note the Weighted Handle Time column is
the volume-weighted average handle time calculated as:
SUM( Average Handle Time * ( SUM(Volume) ) )
In this example:
(250 * (100 / 175) ) + (300 * (50 / 175) ) + (320 * (25 / 175) ) = 274 wAHT
However, in most circumstances the agent population is neither 100% cross-trained nor 0%
cross-trained. The result is that the ability to group commonly assigned activities is significantly
difficult. To accomplish this, Community uses an algorithm based on a quadratic equation to
determine the similarity in skills across agents. The result is a set of activity clusters and the
probability that a call will be answered by a given activity in each cluster.
How does Community Generate the Clusters?
The clusters provide the probability that a call can be answered in a skill in a cluster. In the fully
cross-trained example above, Community would create a single cluster that represents all skills
and agents. The result is that each skill (activity) in the cluster would have a 100% probability of
being satisfied in that cluster, simply because no other clusters exist.
However, if cross training is fragmented, more clusters result, and the probabilities will vary

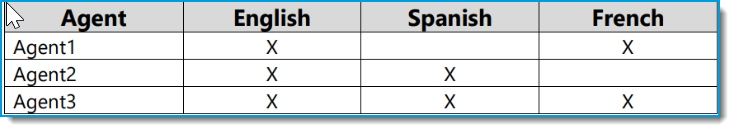

depending on the clusters involved. Consider a more realistic cross training matrix:
During the process of creating an Agent Requirements Forecast, Community generates the
clusters based on the above matrix. The result is three clusters for each activity, due to the

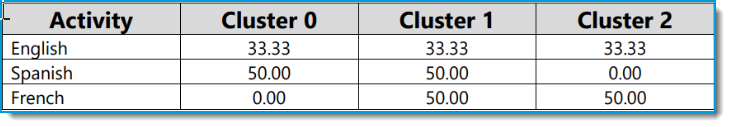

fragmentation of the French and Spanish activities. The resulting cluster matrix appears as
follows:
Examining the clusters will reveal that Cluster 0 is the combination of the English and the
Spanish activities, Cluster 1 is the combination of all three activities, and Cluster 2 is the
combination of the English and the French activities.
Cluster 0 is a result of the cross training provided by Agent2, who is assigned only English and
Spanish. Cluster 1 is a result of the cross training provided by Agent3, who is assigned all three
activities. Cluster 2 is a result of the cross training provided by Agent1, who is assigned only
English and French.
Notice also that the English activity appears in all clusters. The reason is because all agents are
assigned to the English activity, so in all clusters some chance exists that a call offered to the English
activity will be answered in each cluster. Since all agents are assigned English, the probability is
evenly divided across the clusters.
What do the Clusters do?
Again, the clusters provide the probability that a call offered to an activity will be handed by the
activity in the cluster. The probabilities for an activity in the clusters will always sum to 100
(100% probability that the call will be answered by the activity in a cluster). Essentially, for a
given cross training matrix, the clusters provide the right combinations of activities to forecast as
a single combined group. The correct grouping of activities exists somewhere between the two
extremes (no cross training and 100% cross training), and the clusters provide the grouping
strategy.
The first step in creating the enhanced forecast is to determine the number of servers given the
volume and handle time for all activities included in the cluster. Essentially, the algorithm pools
all the volume for all activities together, as in the 100% cross training example above. However,
the volume for activities is not included in the pooled demand if the probability of a call being

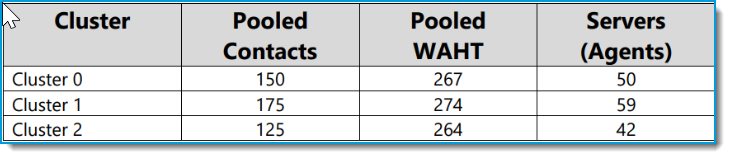

handled in that cluster is 0. The following table illustrates the pooled demand resulting from the
clusters defined above:
Recall that Cluster 0 is a combination of English and Spanish, which contribute 100 and 50 calls
to the combined “pool” respectively. The Weighted Average Handle Time is calculated as
described above.
Cluster 1 is a combination of all three activities, resulting in a pooled demand of 175 (100 + 50 +
25), and Cluster 2 is a combination of English and French with pooled demand of 125 (100 + 25).
The algorithm then calculates the number of servers for the entire combined demand using the
service objectives of the current activity. The algorithm will sum the pro-rated servers across all
clusters where the probability is > 0. The formula below provides the clustered servers for a
given activity:
Clustered Servers = SUM( wC * sP * ( cA / cP) )
Where:
• wC is the weight for a given cluster
• sP is the servers for the pooled demand
• cA is the volume for the given activity
• cP is the volume for the given pool

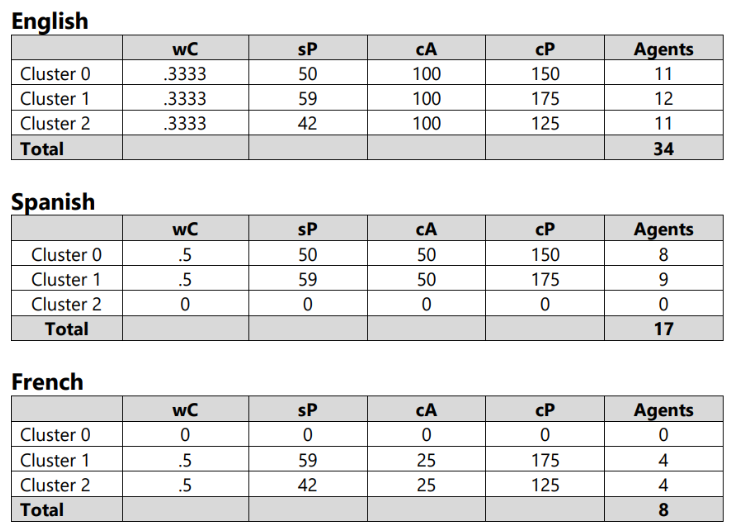

• Substituting our values for the above activities:
The accumulation of all agent requirements is 34 + 17 + 8, or 59 agents. Compared to the
original Erlang C based agent requirements forecast of 67, we realize a 10 agent efficiency gain,
or approximately 15% for this particular interval. Note: all values for agents required are
rounded up to the nearest whole number to ensure the desired service levels are achieved.
The efficiency calculation to compare the Standard Forecast versus the Enhanced Forecast is as
follows:
Staffing Hours – Enhanced Staffing Hours / Staffing Hours
Forecasting for Dissimilar Service Objectives
The above algorithm calculates the headcount required to satisfy a given activity’s proportion of
the pooled demand based on the activity’s service objectives. While the volume and handle time
values for the pool is used across multiple activities, the servers (agents) required is based on
the specific activity’s service objectives. Therefore, the resulting headcount requirement for the
pool is based on the service level for the activity and consequently the prorated amount reflects
the individual service objective.

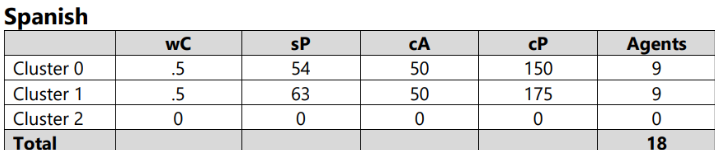

Consider the above example with a service level for Spanish at 90/10.
The resulting headcount increases for Cluster 0, reflecting the increased service level required
for Spanish. However, other activities are unaffected by the dissimilar service objective.
Rollup Values for Parent Activities / Calculating Staffing Hours /
Calculating FTEs
The method for displaying agent requirements at a parent activity level is the same between
Standard Forecasting and Enhanced Forecasting. The staffing hours at any level of the activity
are calculated as follows:
SUM( Interval Head Count Requirements / System Default Slots per Hour)
In the examples above, if each interval between 7:00 AM and 5:00 PM (inclusive) required 59
agents, then the staffing hours at the parent level would be:
Agents Required * Slots/Hour * Hours (59 * 4 * 10) + 59 = 604 Staffing Hours
Note the last 59 is due to the 5:00 PM interval being included in the forecast.
Calculating the FTEs based on the staffing hours is:
Staffing Hours / 8.0 (Assume FTE is 8-hour employee).
These values for an individual activity are identical to a parent activity.
Scheduling Standard Erlang vs. Enhanced Agent Requirements Forecast
Community provides schedules the ability to choose the forecasting method used to generate schedules. If the Enhanced Agent Requirements Forecast is selected (using Skill-based Forecasting Methods), Community exports the Enhanced Agent Requirements value for the interval. If standard forecasting is selected, then Community exports the standard Erlang based agent forecast. However, in either case the optimizing engine will optimize the workforce over all assigned activities.
